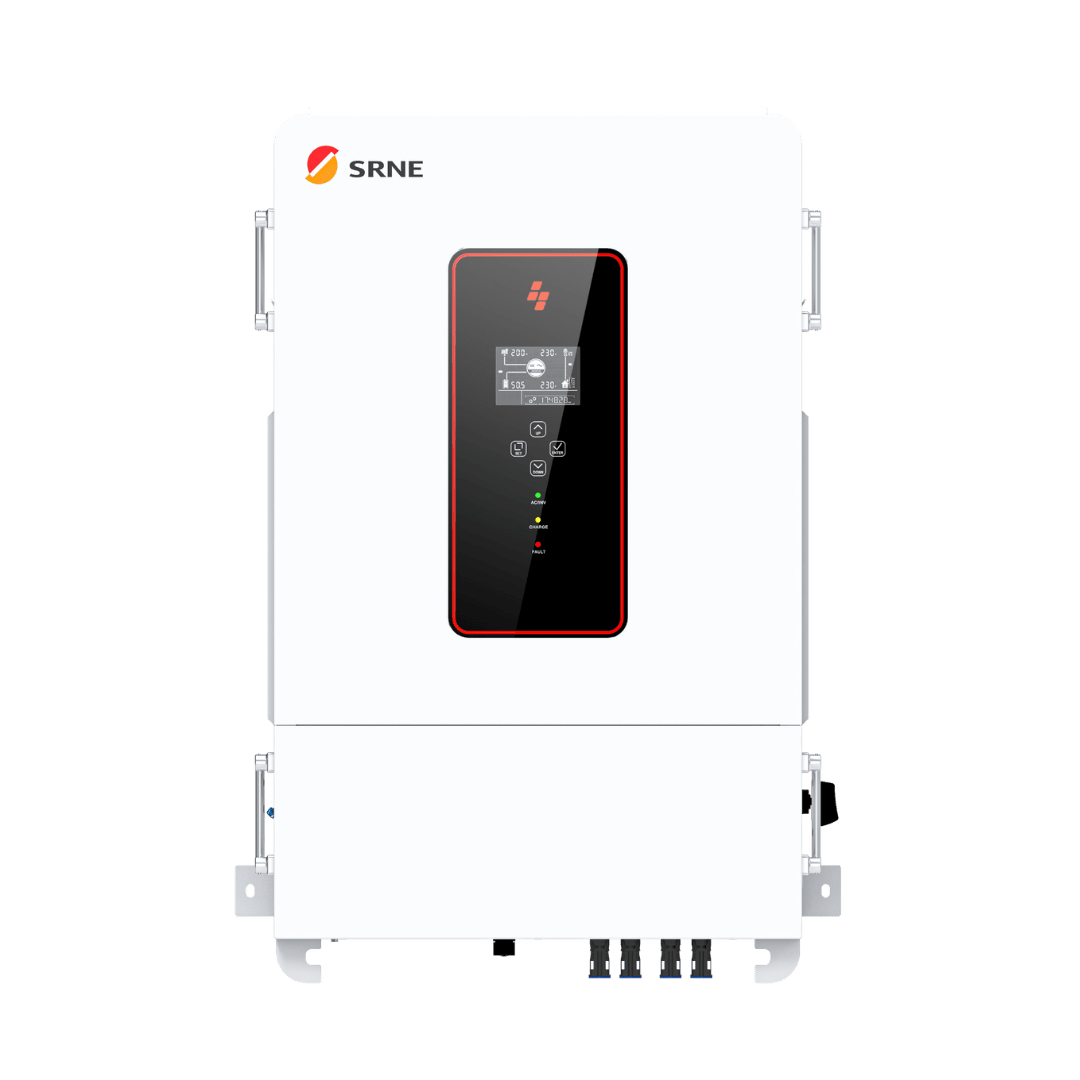

ASF48100U200-H
Quick Specs
| Rated Power | 10,000 W / 20,000 VA |
| Max Efficiency | 92% |
| MPPT Efficiency | 99.9% |
| Max Solar Charge Current | 200 A |
| Max PV Power | 5,500 W + 5,500 W |
| Warranty | 2 Years |
Features
- 10 kW split-phase (120/240 Vac), highest in ASF series
- Supports multiple voltage levels with 120/240 Vac output
- Hybrid charging up to 200 A, grid/generator up to 120 A
- < 60 dB noise, 27 kg weight, 130×445×620 mm dimensions
- IEC 62109-1/2 / IEC 62477 / FCC Part 15 Class B / RoHS certified
